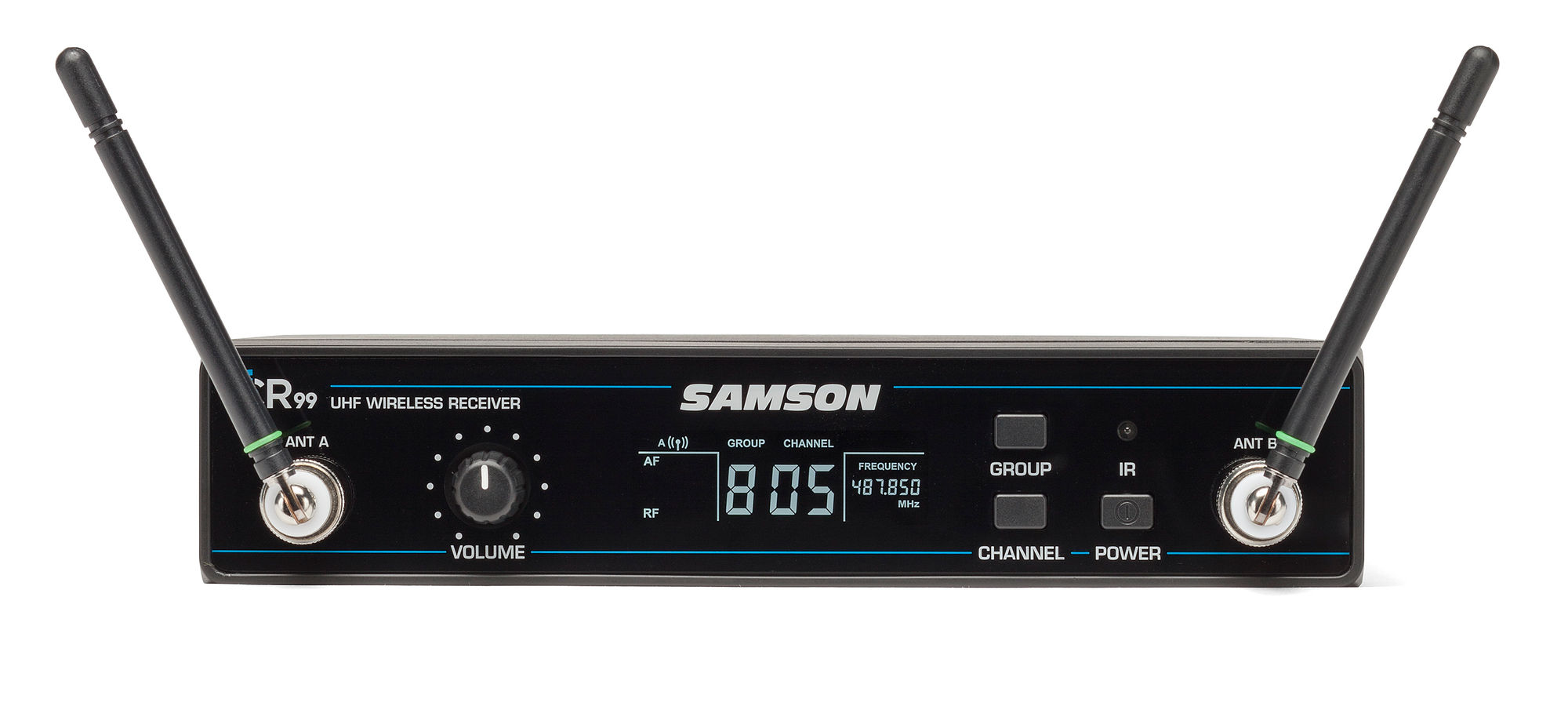

CR99 Receiver

For Concert 99, AirLine 99, AirLine AWX

The extremely rugged, all-metal CR99 receiver features a bright, backlit LCD for monitoring on dark stages, even at long distances. The LCD also displays the exact battery life of your transmitter, along with the channel number and corresponding UHF frequency. The receiver includes detachable 1/4-wave antennas and has front- and rear-mounted BNC connectors.

Features / Specs

CR99 Receiver

  • Rugged, all-metal rack mountable chassis
  • Multifunctional backlit LCD (RF, audio, transmitter battery levels)
  • Group scan for easy single or multi-system setup
  • IR sync wirelessly matches receiver and transmitter frequency
  • True RF Diversity design minimizes dropouts
  • Tone key prevents unwanted noise when transmitter is off/out of range
  • Removable 1/4-wave antennas
  • Balanced XLR and 1/4" outputs

Specifications

Audio Output Level - Unbalanced +14 dBu
Audio Output Level - Balanced +9 dBu
Audio Output Impedance - Unbalanced 810 Ohms
Audio Output Impedance - Balanced 240 Ohms
Sensitivity -100 dBm / 30 dB sinad
Image Rejection >50 dB
Operating Voltage 15 VDC 200mA
Dimensions (LxWxH) 7.87" x 5.9" x 1.6" / 200mm x 150mm x 42mm
Weight 2.08lb / 946g

Warning CALIFORNIA PROPOSITION 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
