AirLine AG8 Guitar Transmitter

Wireless Guitar Transmitter for AirLine 88x

The compact, plug-in AG8 Guitar Transmitter is designed to be an extension of your instrument, allowing you to move freely on stage and interact with your audience like never before. It features IR sync for wirelessly matching receiver and transmitter frequencies, an audio mute switch for silent instrument swapping, a battery life LED indicator, and up to 12 hours of operation on a single AA battery. The AG8 is as easy to use as a standard guitar cable. Just plug the small transmitter into your instrument and the receiver into your amp. It's that simple.

Highlights

  • Versatile Performance

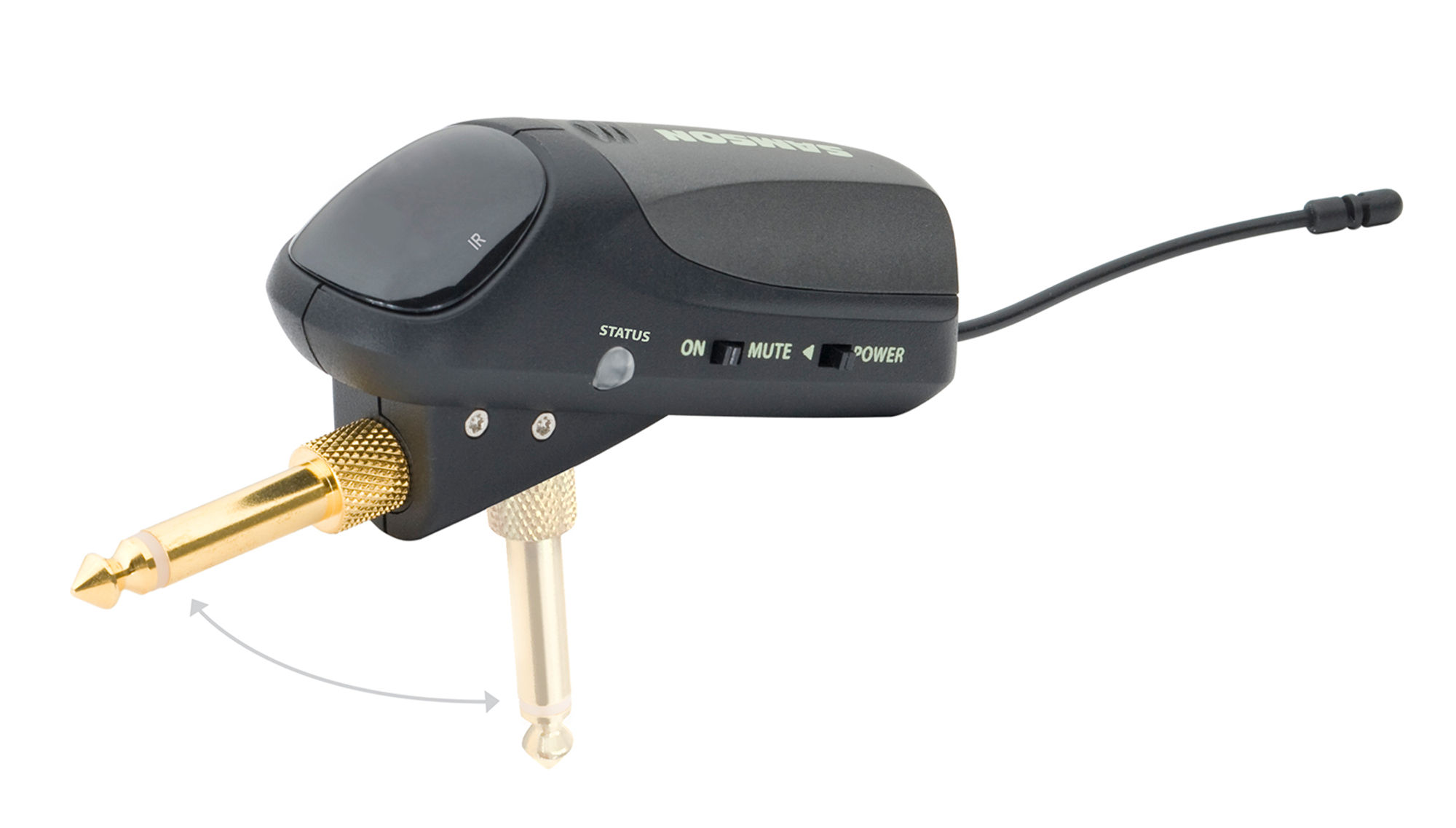

    The AG8 plug-in transmitter is designed with a dual-position connector that fits both Fender® (Stratocaster) and Gibson®-style guitar output jacks. It also provides exceptional low-end clarity, making it ideal for electric bass guitars. It's even a great wireless solution for acoustic-electric guitars, electric violins, and accordions.

    AG8 Guitar Transmitter in use IMG_5516

Features / Specs

AG8 Guitar Transmitter

  • Plugs directly into the instrument (no beltpack or cable required)
  • Dual-position connector fits a variety of guitar jacks
  • Offers up to 12 hours of battery life using single AA battery
  • Dual-color LED indicator – Low Battery; Peak Level; Mute status
  • 300' operating range (line-of-sight)
  • Variable Gain control
  • Silent mute switch

Specifications

AG8 Guitar Transmitter Specifications
Input Connector 1/4" Plug
Input Impedance 1MΩ
Input Gain Range 30dB
RF Power 5mW EIRP
Power Requirements 1 x AA (LR6)
Battery Life 5 hours
Dimensions (1/4” plug is mounted at 45°) 1.17" x 1.6" x 4.5" / 30mm x 40mm x 114mm
Weight 0.12lb / 50g

More Guitar Wireless

Compare Guitar Wireless Systems

Concert 88x Guitar

-

Concert 99 Guitar

-

AirLine 88x Guitar

-
Type UHF UHF UHF
Frequencies 100 80 100
Compatible Systems per band 8 8 8
Transmitter CB88 Beltpack CB99 Beltpack AG8 Plugin
Transmitter Battery 2xAA / 8 hours 2xAA / 8 hours 1xAAA / 12 Hours
Receiver Type Half-rack Half-rack Half-rack
Rack-mountable Yes - Rack kit included Yes - Rack kit included Yes - Rack kit included
Receiver Output Connections XLR, 1/4" XLR, 1/4" XLR, 1/4"
Antenna Distribution Capable No Yes No
Learn More
Learn More
Learn More
